All-in-One Real-Time MonitoringDAS with Display
The Data Acquisition System (DAS) with Display is an all-in-one solution designed to collect, monitor, and visualize real-time data from multiple sensors and field devices. With an integrated display and industrial-grade design, it delivers instant insights on-site while seamlessly connecting to automation and IoT platforms.
Partnership with
Key Capabilities
Engineered for Excellence
Industrial-grade 32" to 85" SAMSUNG Display, 64-channel configurable logging, built-in Windows 11 Industrial PC, and Modbus/RS485 networking.
Industrial Grade PC & SAMSUNG Display

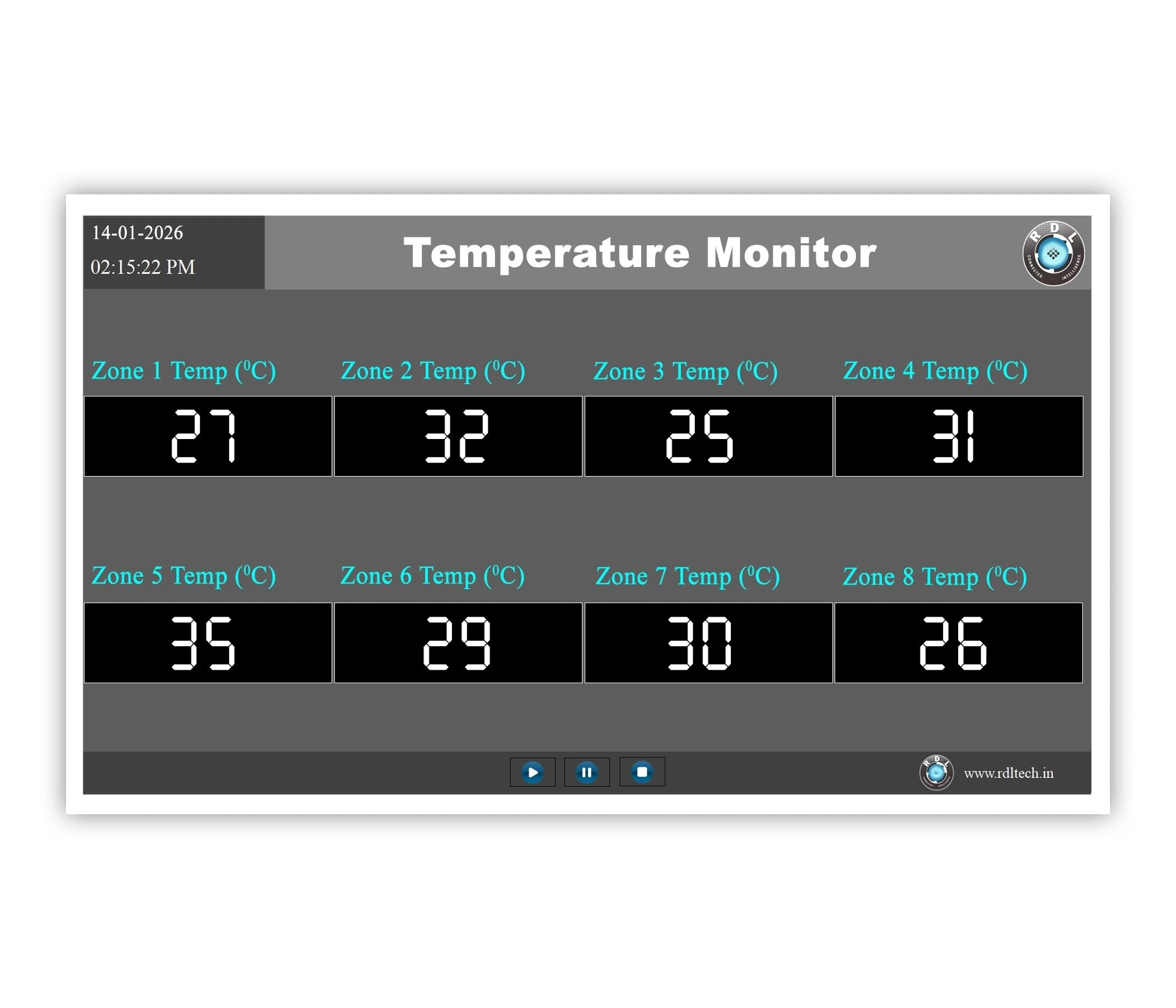

Integrated 32" to 85" SAMSUNG Display powered by a 2.2GHz Industrial PC, 4GB RAM, 120GB SSD, pre-enabled Windows 11 OEM License, and customizable 8-screen dashboard system.
64 Configurable Data Logging Channels
Supports up to 64 custom-configurable data channels with customizable channel labels, color-coded threshold alerts, and configurable polling intervals.
High-Precision Isolated Analog & Digital I/O
12x to 48x isolated 16-bit high-precision analog input channels, 4x to 16x digital inputs, and 1x to 4x industrial relay control modules.
Enterprise Security & Modbus Networking
1x Isolated RS485 RTU, 1x Isolated Modbus TCP Ethernet port, custom configurable REST API integration, SSL, and AES-256 data encryption.
Applications
Real-time monitoring across process plants, environmental setups, solar grids, and boiler water systems.
WHERE IT FITS
Deploy across industrial plants, utility, and SCADA environments
Production and Process Monitoring
Utilities & Energy Monitoring
Machine Condition Monitoring
Environmental Air Quality Monitoring
Industrial Smart Grid Integration
Solar PV Array & Inverter Monitoring
Cold Storage & Refrigeration Logistics
Water & Wastewater Treatment Facilities
Industrial Generator & Backup Systems
Greenhouse & Agricultural Tech
Calamity & Emergency Warning Systems
Boiler, Steam & Furnace Process Systems
Architecture

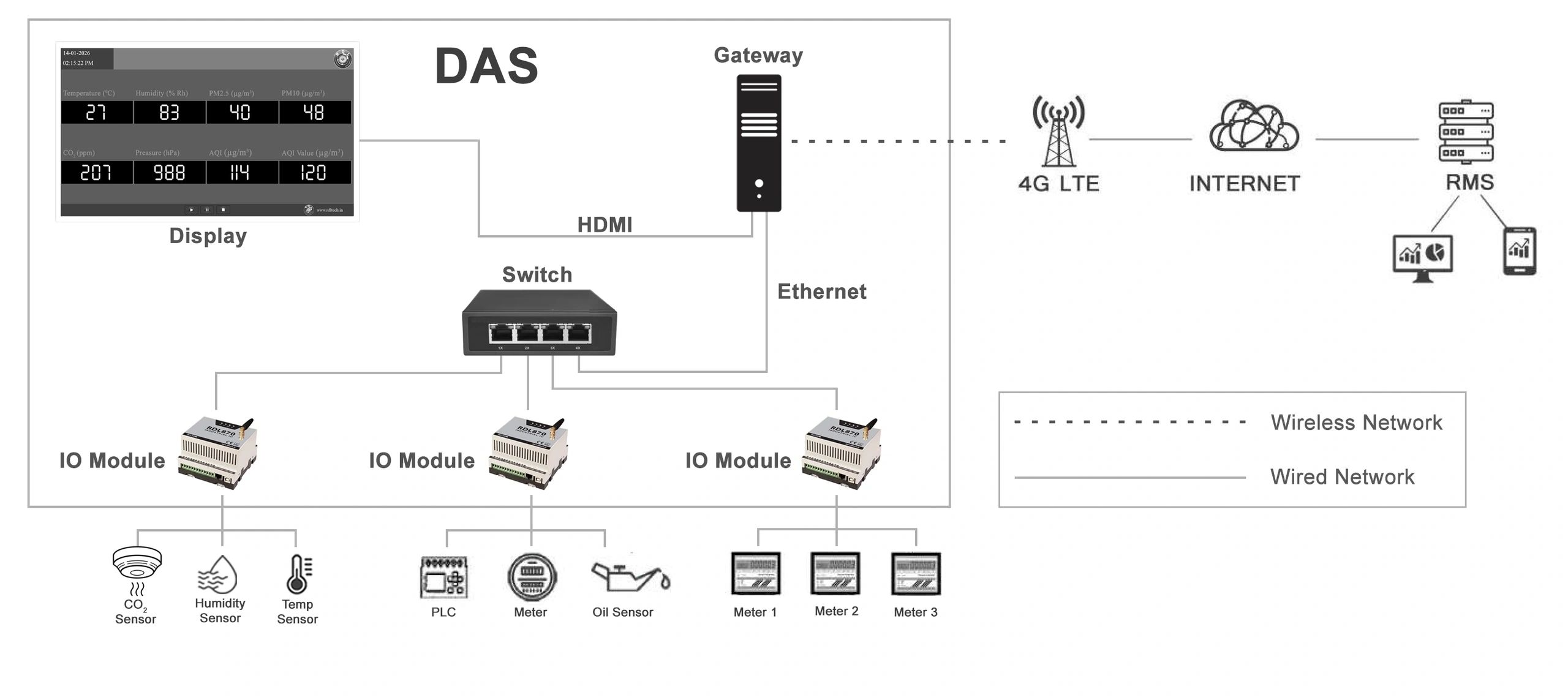

Internal Architecture Diagram
Complete hardware architecture showing field sensor interface, isolated I/O matrix, display driver, and cloud API connectivity.
Specification Tables
Application Specific Order Models
Tailored hardware configurations and specification matrices for industrial test rigs, environmental monitoring, solar farms, and boiler systems.

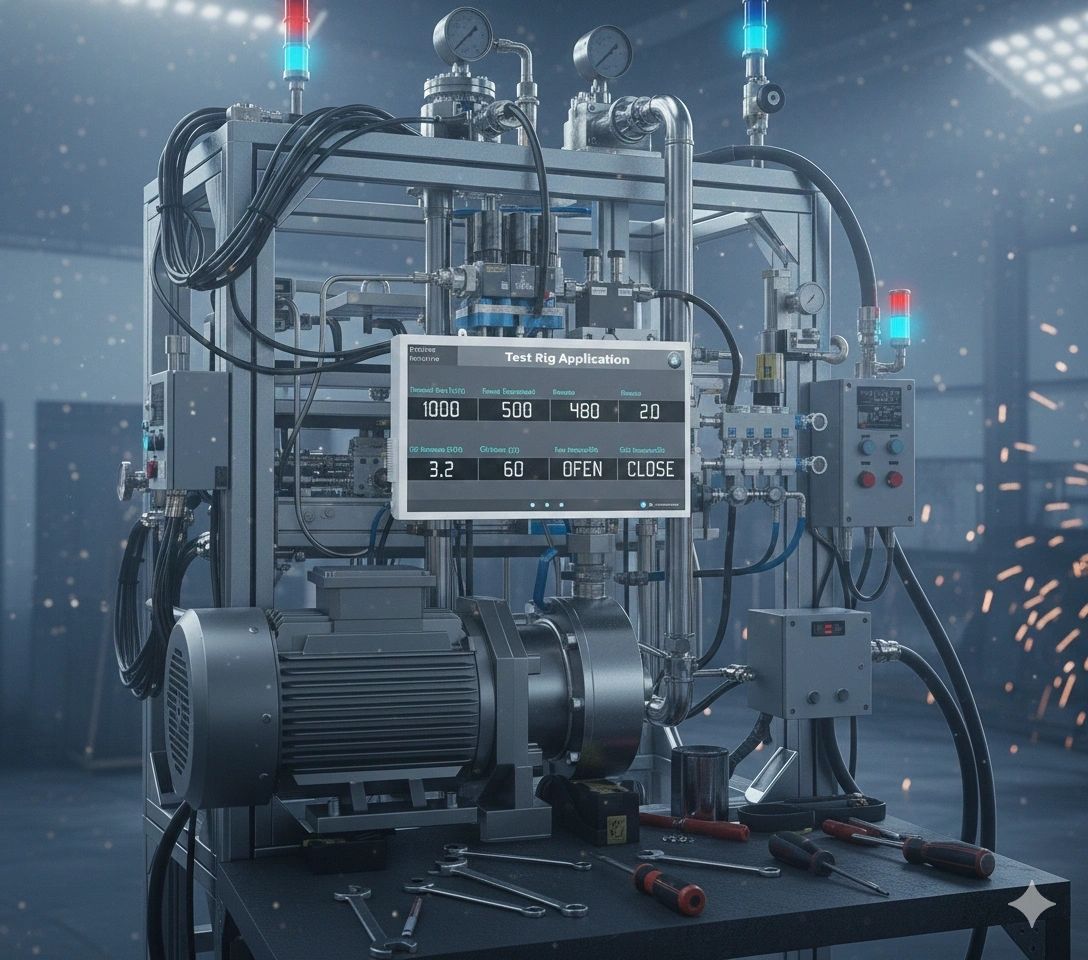

Test Rig Application
| Model | Analog | Digital | Relay | PT100 | K/J Temp |
|---|---|---|---|---|---|
| RDL926A | 12X | 4X | 1X | - | - |
| RDL926B | 24X | 8X | 2X | - | - |
| RDL926C | 36X | 12X | 3X | - | - |
| RDL926D | 48X | 16X | 4X | - | - |
| RDL926E | 24X | 8X | 4X | 16X | - |
| RDL926F | 24X | 8X | 4X | - | 16X |

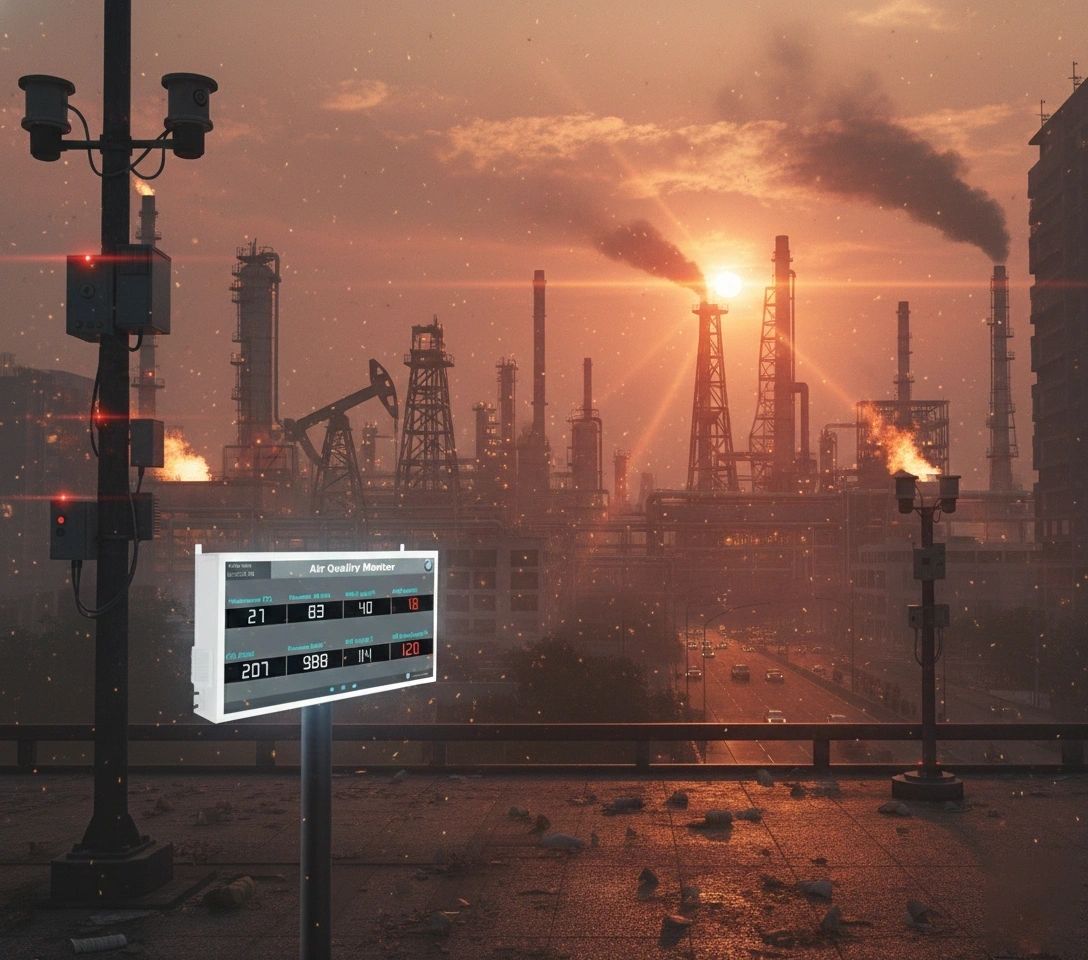

Environment Monitoring Application
| Model | Environmental Parameters | Industrial Gas Sensors |
|---|---|---|
| RDL926G | 1 Set (Temp, Humidity, PM2.5, PM10, Pressure, CO2) | - |
| RDL926H | 1 Set (Temp, Humidity, PM2.5, PM10, Pressure, CO2) | 1 Set (CO, SO2, NO2, H2S, O3, NH3, Cl2) |

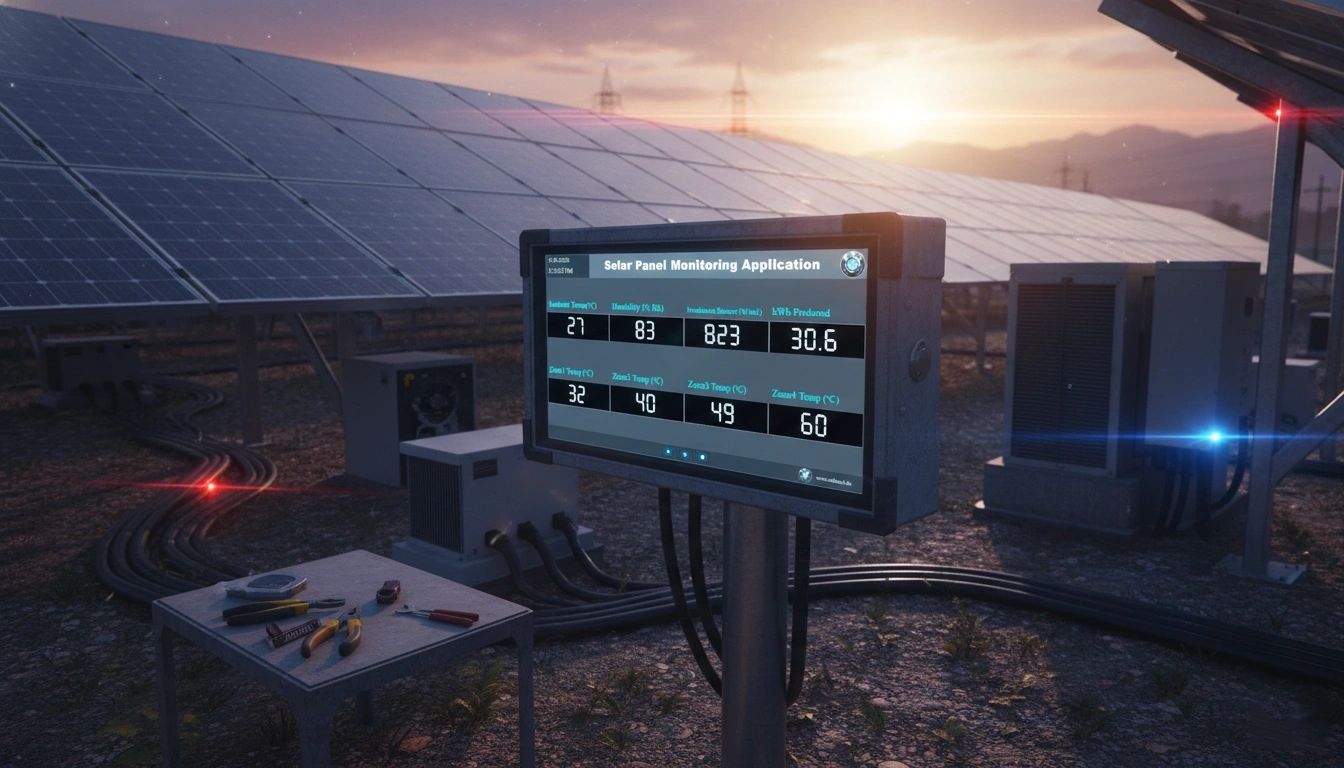

Solar Panel Monitoring
System Features & Sensors
- ✓Display: Yes
- ✓Edge Gateway LTE / 4G / 5G / Wi-Fi: Yes
- ✓Inbuilt 80 GB SSD For Data Logging: Yes
- ✓Solar Irradiance Sensor, Panel Temp. Sensor, Ambient Temp. Sensor, Humidity Sensor: 1 Set
- ✓Modbus Communication for Solar Inverter / Energy Meter: 1 Set

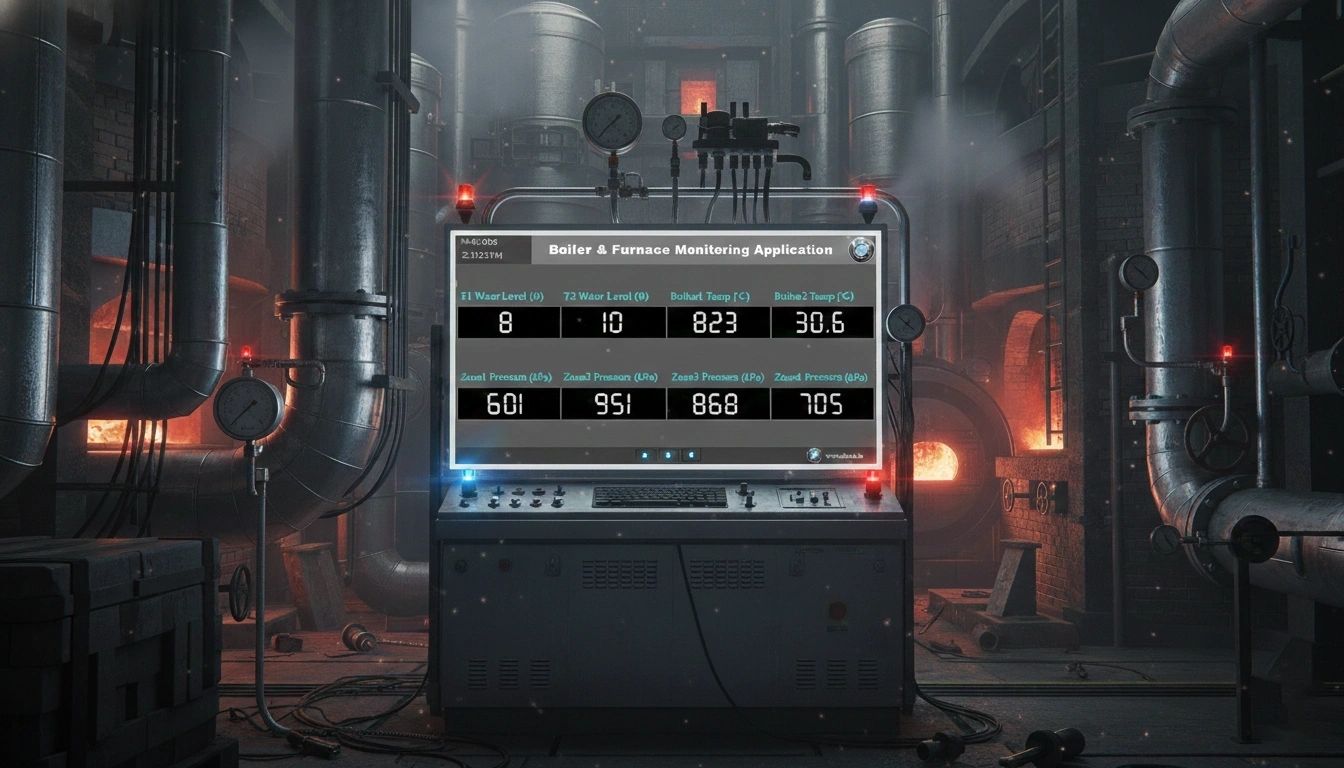

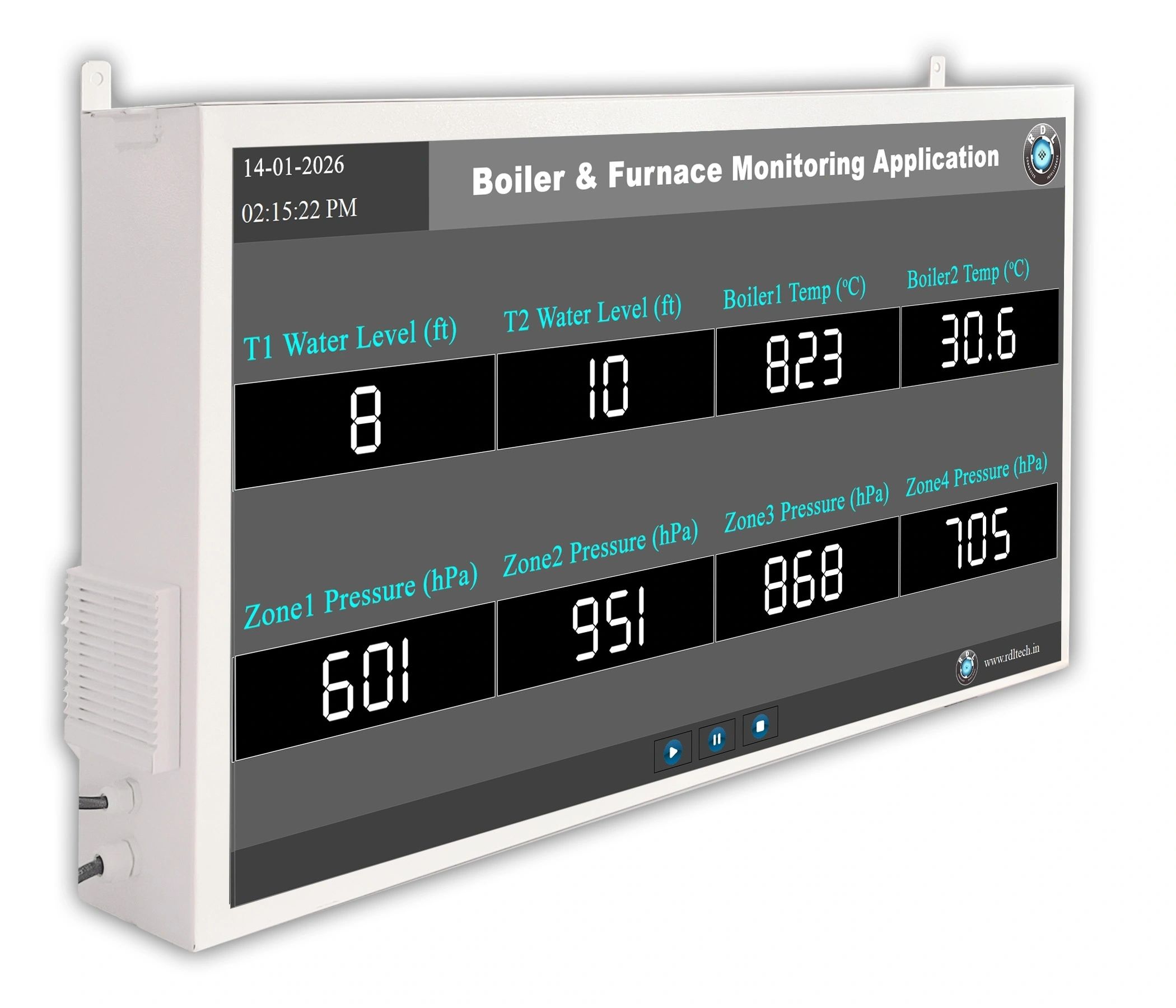

Boiler & Furnace Monitoring
System Features & Sensors
- ✓Display: Yes
- ✓Edge Gateway LTE / 4G / 5G / Wi-Fi: Yes
- ✓Inbuilt 80 GB SSD For Data Logging: Yes
- ✓Temperature Sensor, Pressure Sensor, Water Level Sensor: 1 Set
NOTE: This product is available with customization options based on your application requirements. Pricing may vary depending on configuration. Please contact us to discuss your needs and receive a customized quotation.
Ready to digitize your process parameters?
Collect, monitor, and visualize real-time data from field sensors with our high-precision Data Acquisition System with Display.
