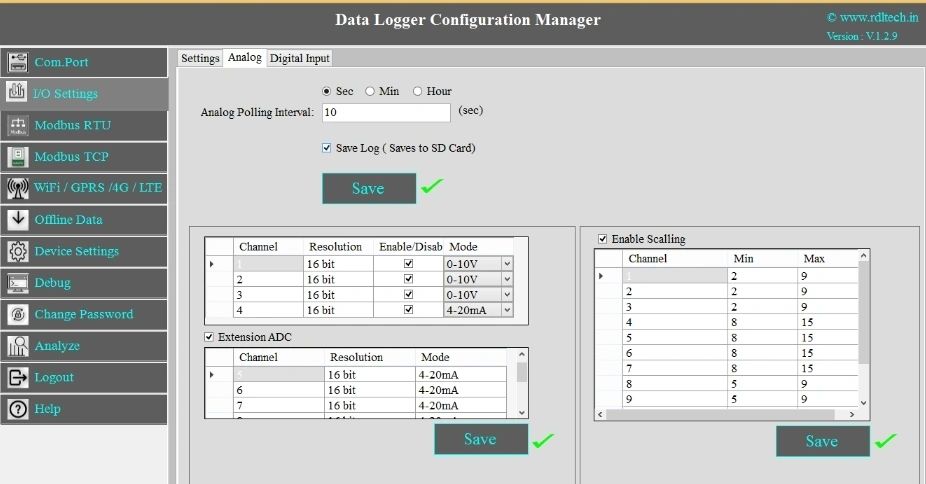

Data Logger Configuration Manager
Configure channels, Modbus settings, analog/digital I/O, and threshold parameters from a single web-based interface.
Data Logger IIoT 4.0
Powerful IoT Edge CapabilitiesIntelligent Data Logger
Intelligent Data Logger product is designed to seamlessly integrate with the IoT and Analytical processing systems.
Partnership with
Key Capabilities
Engineered for Excellence
Discover the intelligent features that make our Data Logger the most reliable choice for industrial automation.
01

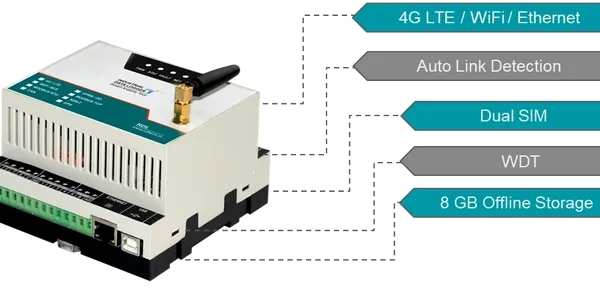

Highly Reliable Connectivity
Dual SIM & Auto link carrier detection and network switching features ensure uninterrupted internet access. Embedded watchdog keeps the device always online.
02

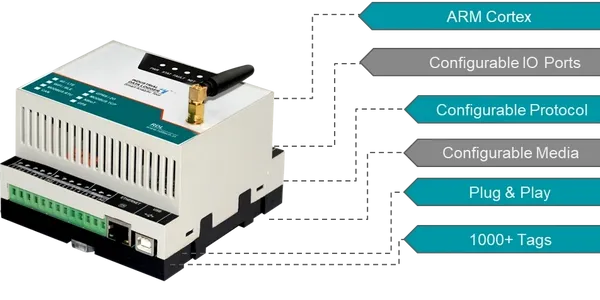

No Coding - Plug & Play
The Plug & Play device feature eliminates the need for coding and allows you to quickly connect your device to the most popular IoT public and private platforms.
03

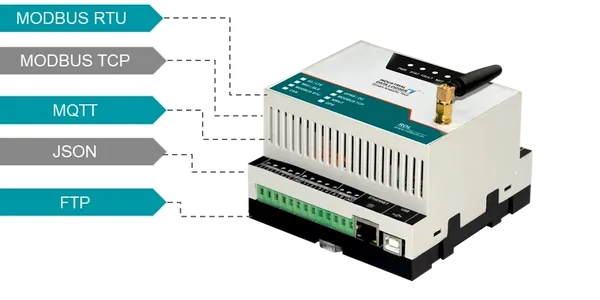

Supporting Wide Range of Industrial Protocol
Device offers multiple industrial protocols like MODBUS RTU, MODBUS TCP, JSON, MQTT, FTP and support secure communication SSL.
04

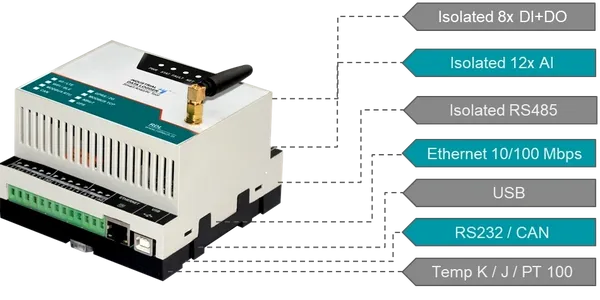

Industrial Isolated IO
Intelligent Data logger offers multiple isolated IO to monitor PLC and VFD, Motors, servo, Valves, energy meter, actuators, relays, encoder, RFID and finger print readers, industrial sensors.
05

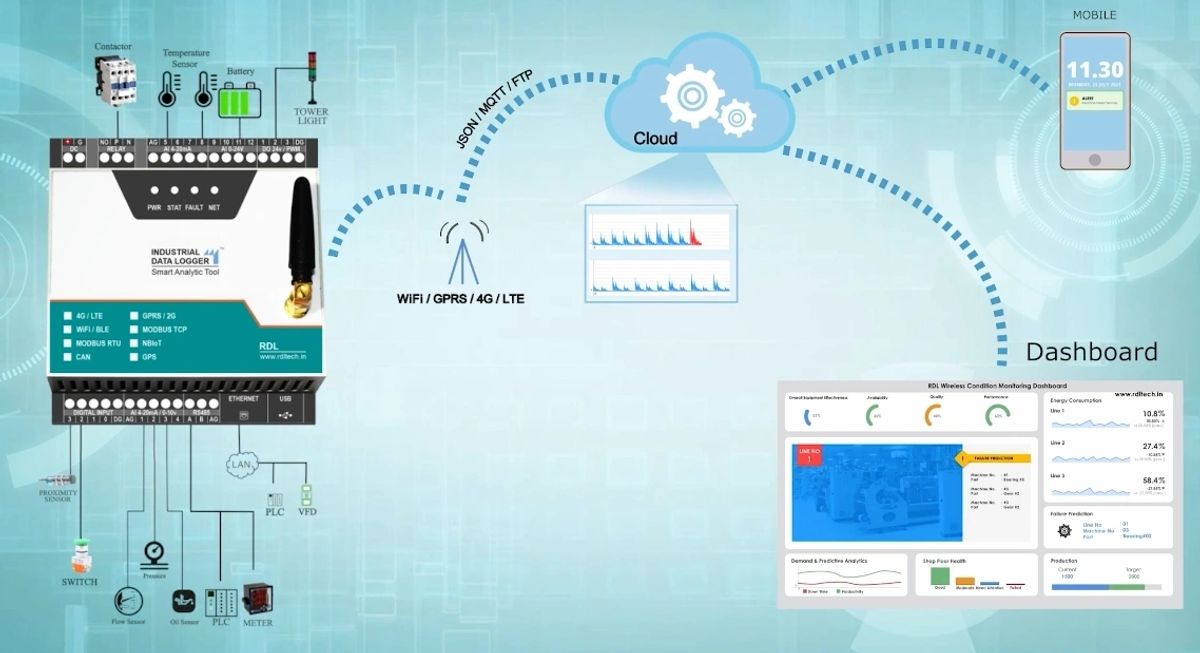

Alarm & Automated Task
Device sends emergency alerts and different escalation-level SMS to remote users in real time. It also supports automating remote assets based on a set threshold.
06

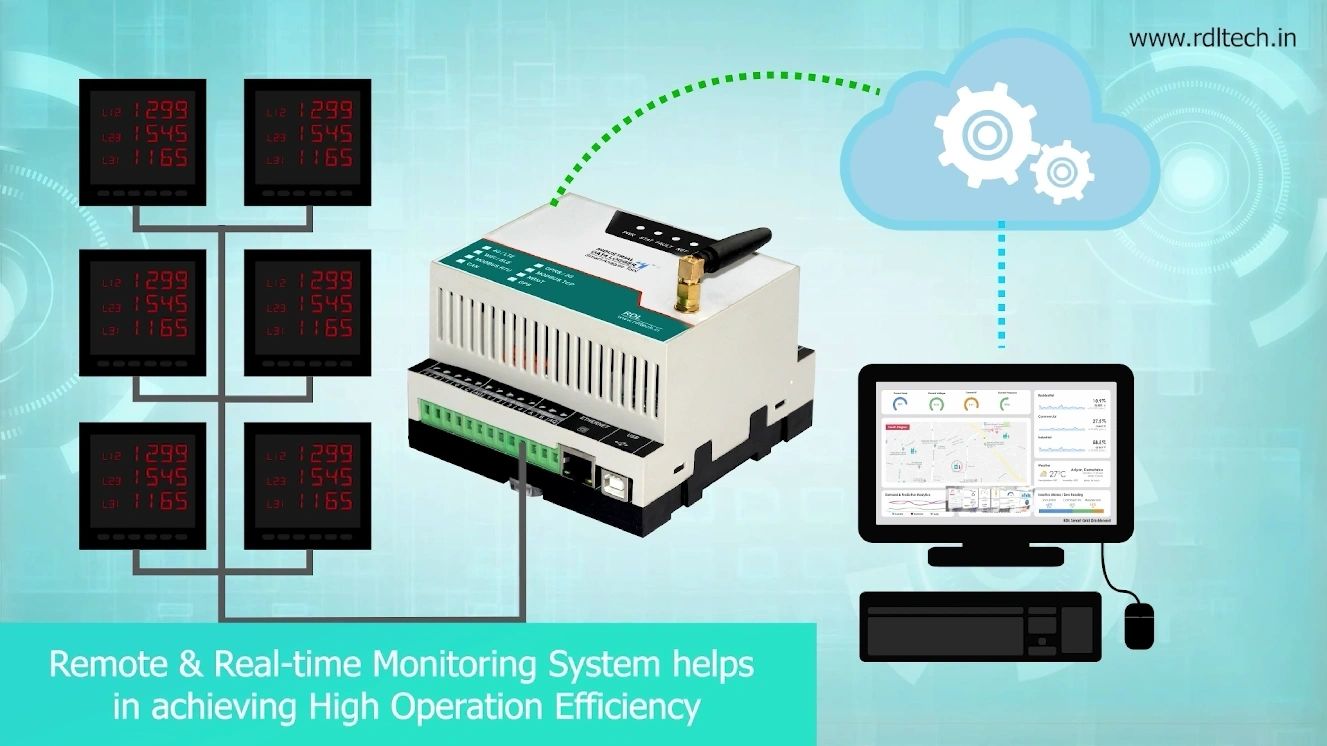

Easy Remote Management
Easily monitor onsite device health and perform bulk configuration through remote access or remote maintenance solutions.
07

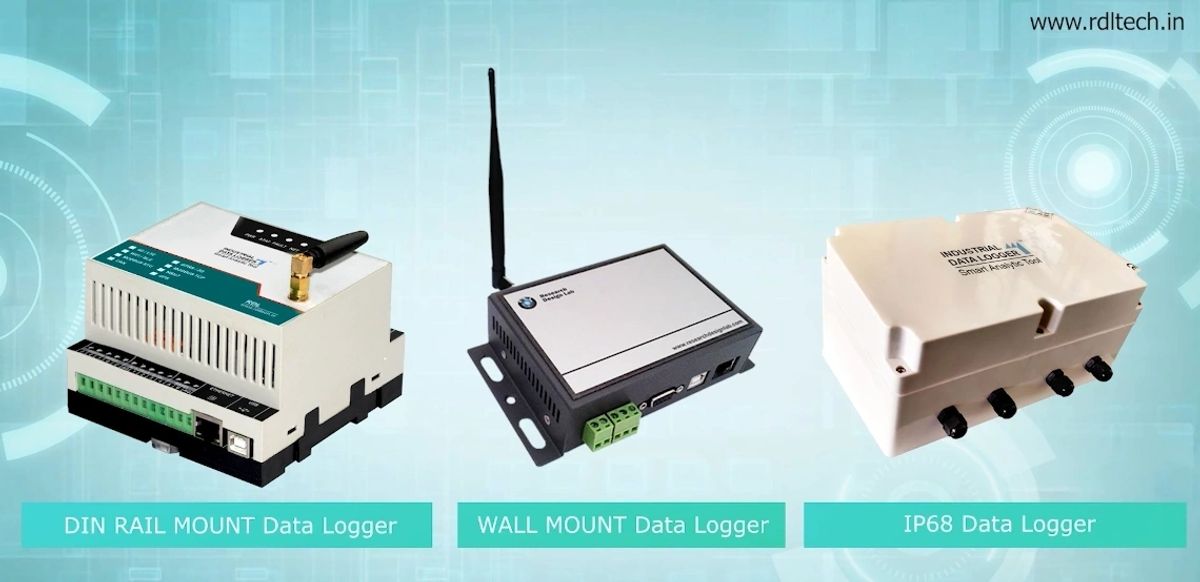

Industrial Grade Design
Product designed to withstand industrial noise and harsh environmental conditions with isolated & protected IO and EMC / EMI compliance.
Use Cases
Applications
Built for industrial environments — from shop-floor monitoring to SCADA and utility systems.
Where it fits
Deploy across plant, utility, and SCADA environments
01
Production and process monitoring
02
Utilities monitoring
03
Condition monitoring
04
Environment monitoring
05
Industrial Smart grid
06
Leakage detection
07
Cold storage monitoring
08
District metering
09
Water treatment
10
Generator monitoring
11
Warning message in case of calamities
12
Standard SCADA Applications
Architecture
Application Diagrams
Real-world deployment architectures — from cascading remote I/O and WiFi modules to SCADA, energy, and compressor monitoring.
02
Cascading Remote IO Module
Connect multiple RDL670 slave units over TCP/IP to a master logger for distributed sensor monitoring with 4G LTE uplink.
03
Cascading WiFi IO Module
Wirelessly cascade RDL670A modules over a corporate WiFi network to the master unit for flexible plant-floor deployments.
04

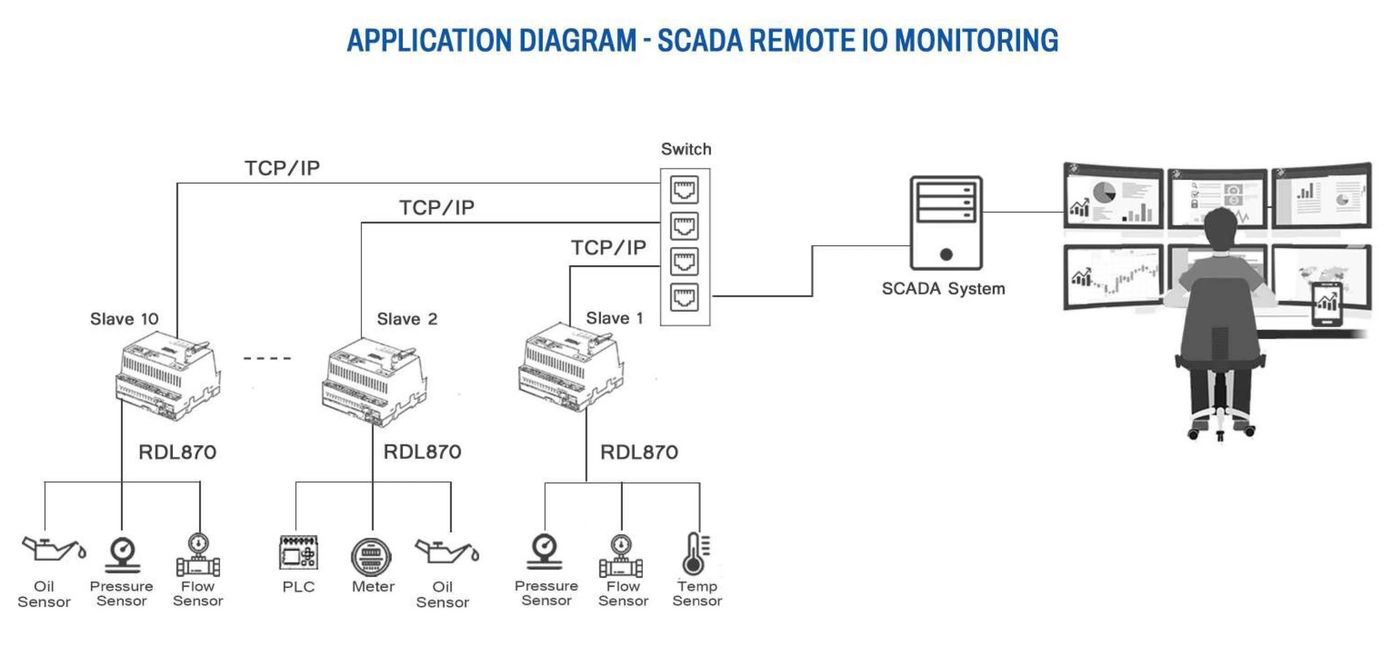

SCADA Remote IO Monitoring
Integrate remote I/O modules with your SCADA workstation for centralized visualization and control.
05

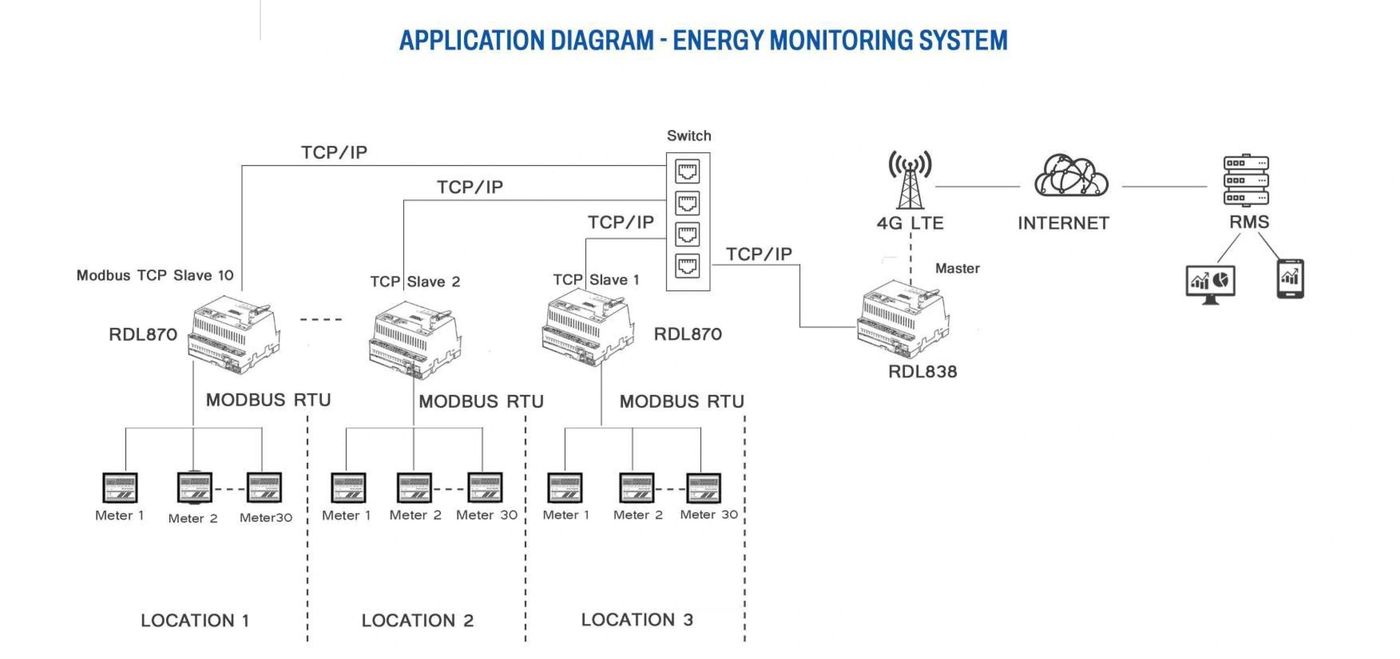

Energy Monitoring System
Monitor energy meters across multiple locations via Modbus RTU/TCP and push consolidated data to the RMS platform.
06

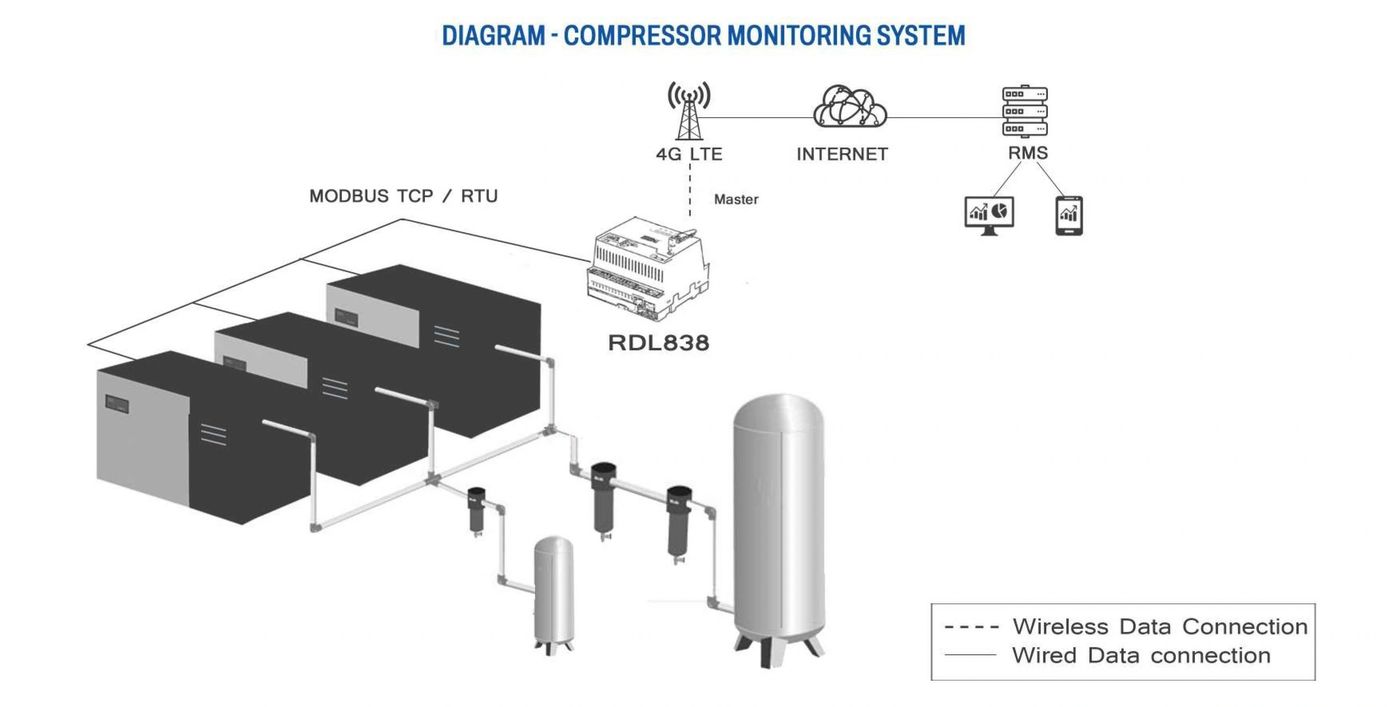

Compressor Monitoring System
Track compressor health and process parameters with wired and wireless data connections to the cloud RMS.
Partnership Ready

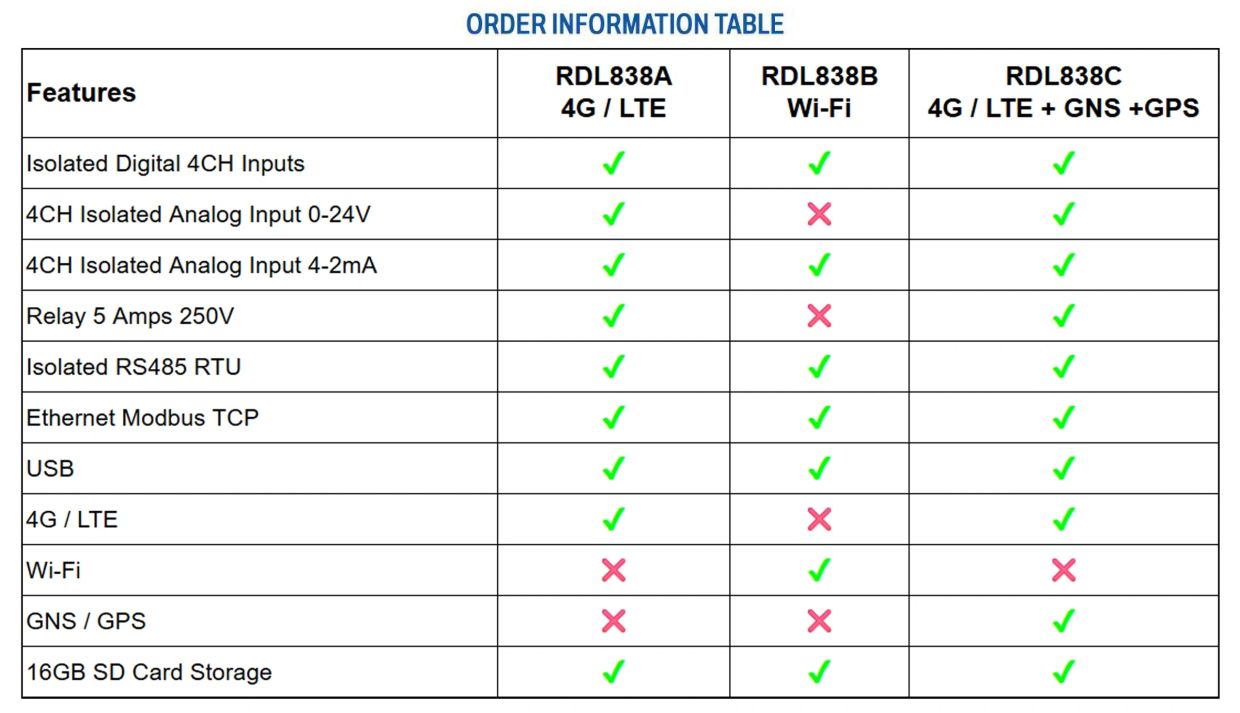

Order Information
OEM, white-label, and custom development options tailored to your brand and process needs.

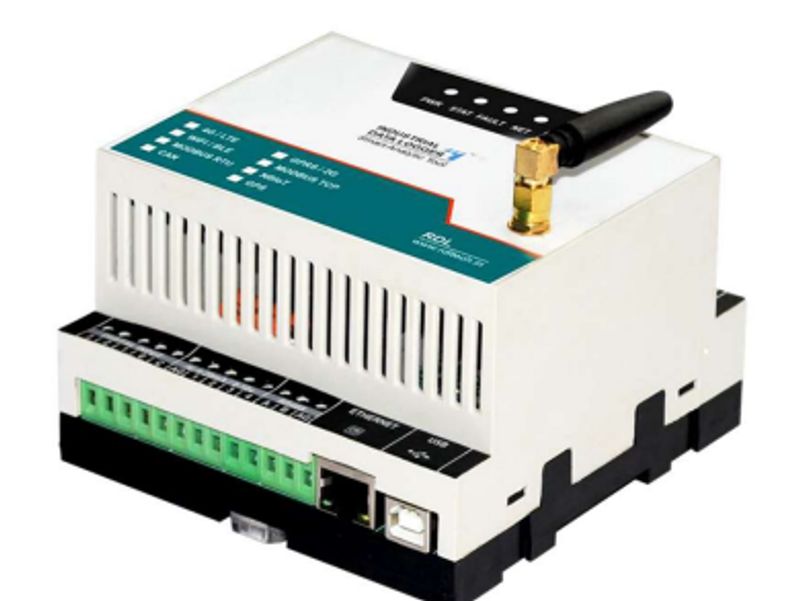

OEM & White Label Service
RDL OEM designs and builds products based on their own specification, then sells them to another company for branding and distribution. OEM minimum order quantity: 100 to 500 units.

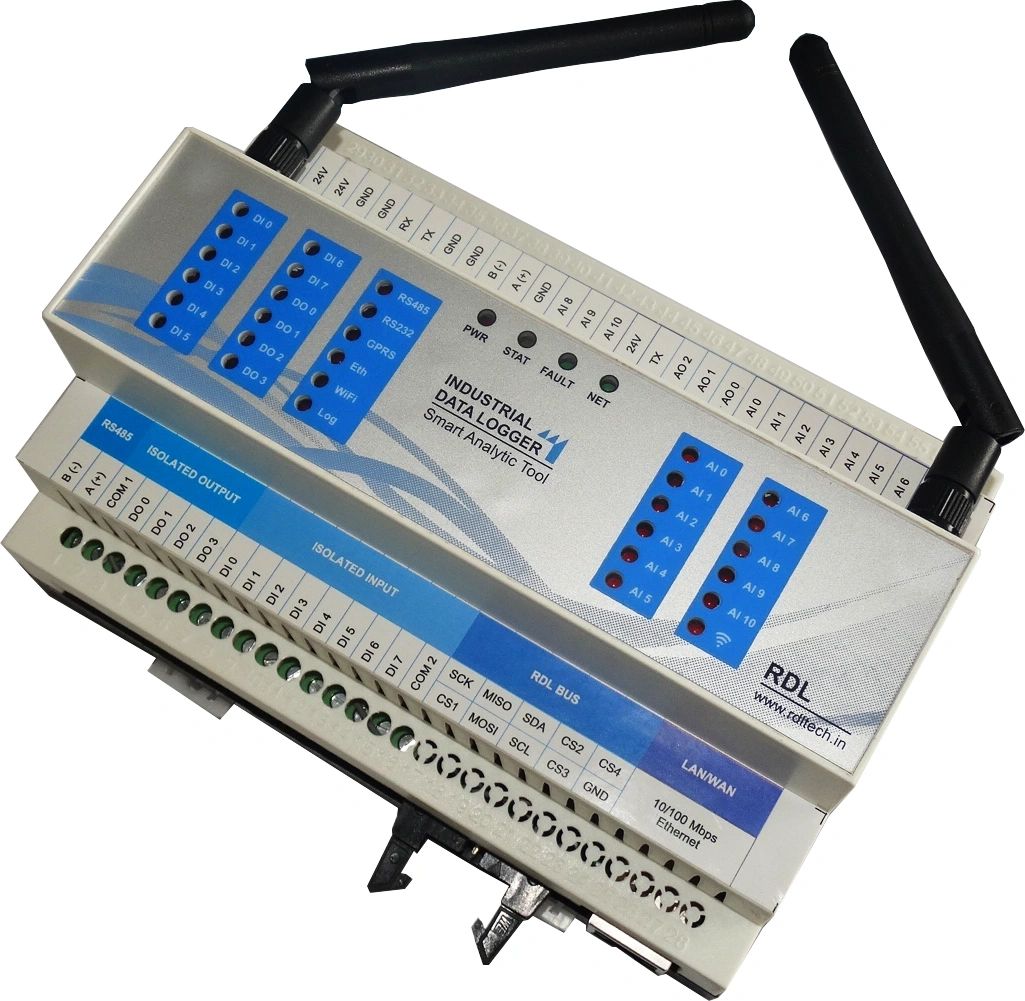

Custom Solution Development
Quick adaptability to any kind of customization — structural, functional, or look-and-feel. Seamless transformation to tailor standard products to your creative requirements.
Dynamic Process Support
Highly flexible, competitive, and economical solutions across a wide variety of business domains — so customers get reliable, delightful business outcomes.
Product Range
Data Loggers
Choose the right industrial data logger for your environment — from 4G LTE to flame-proof and IP65/66 enclosures.

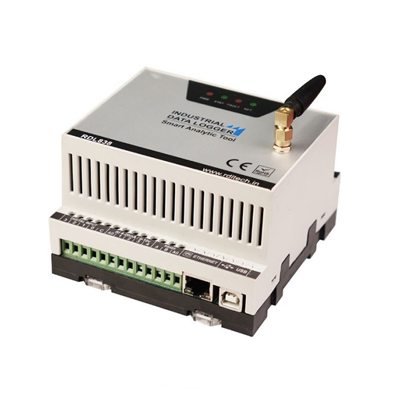

Industrial Data Logger — 4G LTE
- 12 x Isolated Analog Input Channel 0-10V, 0-24V, 4-20mA, 16 Bit, 860SPS
- 4x Isolated Digital Input 24V
- 3x Isolated Digital Output / PWM 24V
- 1x Relay (NO & C)
- 1x Isolated RS485 for MODBUS RTU
- 1x Isolated Ethernet 10/100Mbps MODBUS TCP
- 1x USB-Device Interface for Configuring, Monitoring and Download

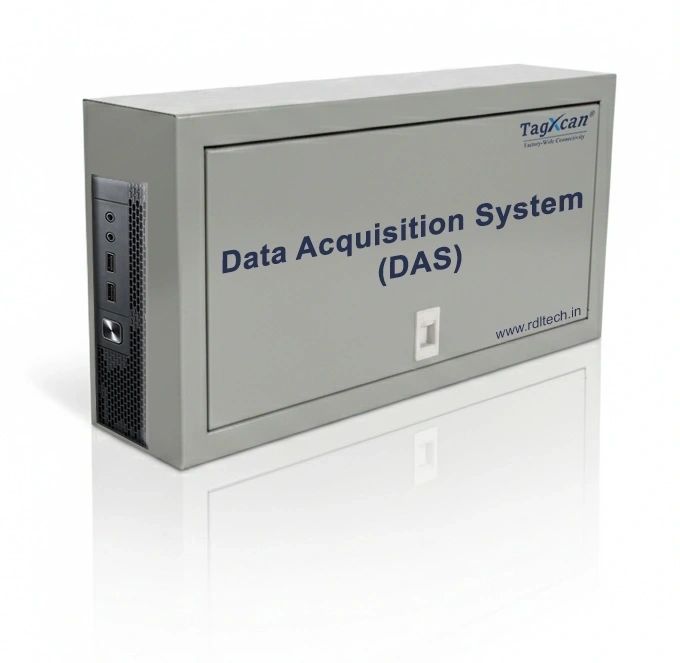

Data Acquisition System
- 48 x Custom configurable Data Channels

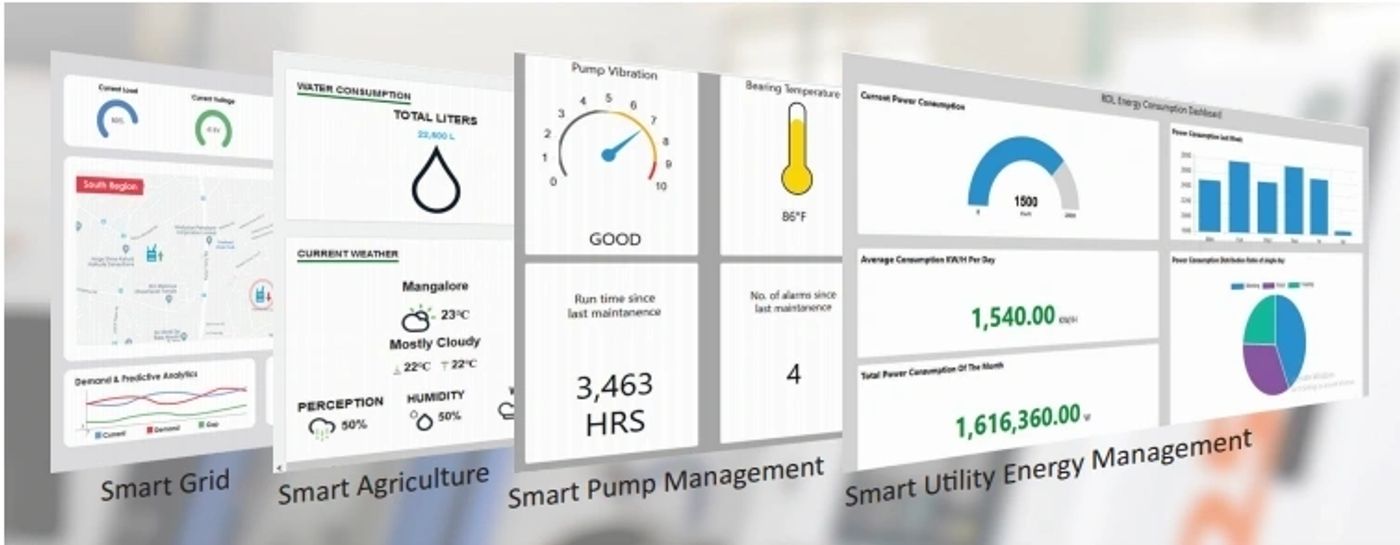

- Custom Configurable Dashboards & data channel Labels
- Custom Configurable up to 8 Dashboard Screens
- Safety and Instruction videos on set intervals
- Custom configurable polling interval
- Windows 11 OEM License Enabled
- Threshold-based color labels & data settings

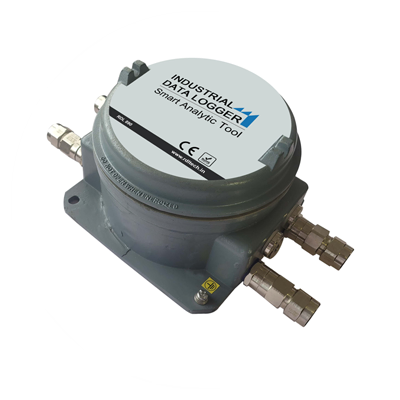

Industrial Data Logger — Flame Proof
- 12 x Isolated Analog Input Channel 0-10V, 0-24V, 4-20mA, 16 Bit, 860SPS
- 4x Isolated Digital Input 24V
- 3x Isolated Digital Output / PWM 24V
- 1x Relay (NO & C)
- 1x Isolated RS485 for MODBUS RTU
- 1x Isolated Ethernet 10/100Mbps MODBUS TCP
- 1x USB-Device Interface for Configuring, Monitoring and Download

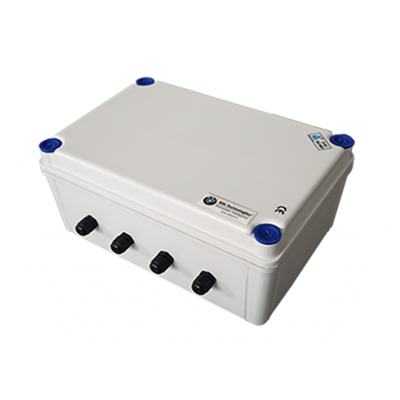

Industrial Data Logger — IP65/66
- 12 x Isolated Analog Input Channel 0-10V, 0-24V, 4-20mA, 16 Bit, 860SPS
- 4x Isolated Digital Input 24V
- 3x Isolated Digital Output / PWM 24V
- 1x Relay (NO & C)
- 1x Isolated RS485 for MODBUS RTU
- 1x Isolated Ethernet 10/100Mbps MODBUS TCP
- 1x USB-Device Interface for Configuring, Monitoring and Download
Resources
Downloads & SDKs
Brochures, manuals, tutorials, and developer SDKs to get your integration live faster.
Downloads
Tutorials on YouTube →SDK and APIs
Shop Data Loggers
Browse and purchase industrial data logger hardware from Research Design Lab.
Ready to digitize your industrial data?
Integrate seamlessly with legacy Modbus networks and modern cloud infrastructures with our reliable IoT Data Logger.
