UHF RFID READERSConnectivity Devices for Enterprise IoT Solutions
RDL UHF RFID Readers deliver high-speed automated asset tracking and inventory identification — featuring multi-tag reading (200 tags/sec) for logistics, warehousing, and access control.
Partnership with
Key Features & Performance Advantages
High-Speed Multi-Tag Reading & Anti-Collision
Scans up to 200 counts per second with adjustable RF power (up to 30 dBm) and antenna gain (3 dBi to 12 dBi). Delivers rapid identification across high-density inventory without line-of-sight constraints.
All-Weather IP65 Industrial Housing & Interfaces
Rugged aluminum casting with IP65-rated weatherproof protection for harsh environmental conditions. Supports RS232, RS485, Wiegand, Trigger/Relay, Ethernet TCP/IP, Wi-Fi, and 4G/LTE cellular uplinks.
EPC Gen2 ISO18000-6C & Multi-Language SDKs
Native TCP/IP, HTTP, and MQTT protocols supporting EPC Gen2 (ISO18000-6C) global RFID standards. Includes developer SDKs for .NET, Java, Python, Node.js, PHP, and Android for rapid deployment.
RFID System Architecture & Network Topology
Seamless Connectivity Across Corporate Networks, Wi-Fi Access Points, 4G LTE & Cloud Services
Multi-location tracking system connecting Readers RDL901, RDL902, RDL903, RDL904, RDL905, and RDL906 across corporate wired infrastructure, wireless access points, and 4G LTE cellular uplinks to central cloud dashboards.
Operational Benefits
RDL RFID Readers streamline industrial production, inventory management, and asset tracking through automated data collection.
- Improved productivity & asset utilization.
- Paperless Production environment.
- Performance Forecasting.
- Production count & rejection tracking.
- Improve the quality and transparency of data across the supply chain.
- Increase the accuracy and reduce the time spent taking inventories.
- Reliable traceability in challenging physical environments.
Industrial RFID Tag Compatibility
Comprehensive tag compatibility designed for every industrial surface and environmental condition.
SDK's & Programming Languages
UHF RFID Reader Models & Hardware Types

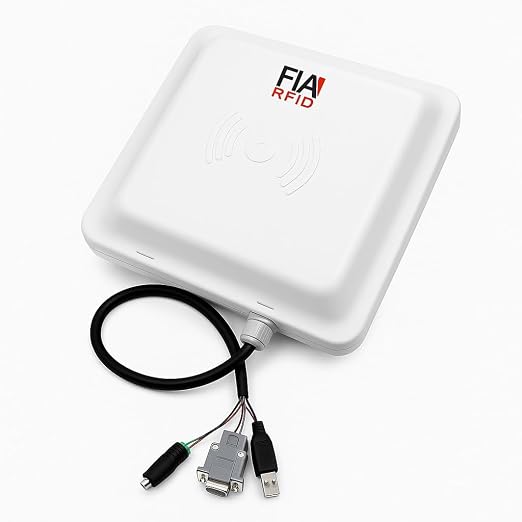

Wall Mount UHF Reader (0-15M)
- Long Reading Range: 0 to 15 Meters
- Dimensions: 260 x 260 x 78 mm
- ISO18000-6C (EPC Gen2) Standard
- Frequency: 902-926 MHz / 865-868 MHz
Industrial Mini Reader (0-3M)
- Compact Scan Range: 0 to 3 Meters
- Dimensions: 95 x 95 x 40 mm
- Conveyor Belt & Robotic Arm Mounting
- High Read Speed: 200 tags / second
Handheld Mobile RFID Reader (0-3M)
- Handheld Scan Range: 0 to 3 Meters
- Ergonomic Dimensions: 166 x 79 x 31 mm
- Android OS + Built-in Wi-Fi
- High-Capacity Rechargeable Battery
Desktop RFID Reader / Writer (0-1M)
- Desktop Proximity Range: 0 to 1 Meter
- Dimensions: 84 x 59 x 34 mm
- USB Plug-and-Play & Serial Interface
- Tag Issuance & Encoding Capability
Order Information & Model Comparison
OEM, white-label, and custom development options tailored to your scan range and enclosure specifications.
OEM & White Label Service
Custom branding, tailored hardware configurations, and white-label manufacturing for distributors, system integrators, and OEMs.
Custom Solution Development
Rapid custom engineering for antenna configurations, specialized mounting brackets, custom read range tuning, and proprietary protocols.
Dynamic Network Support
Multi-protocol connectivity options (TCP/IP, HTTP, MQTT) with seamless cloud and SCADA integration.

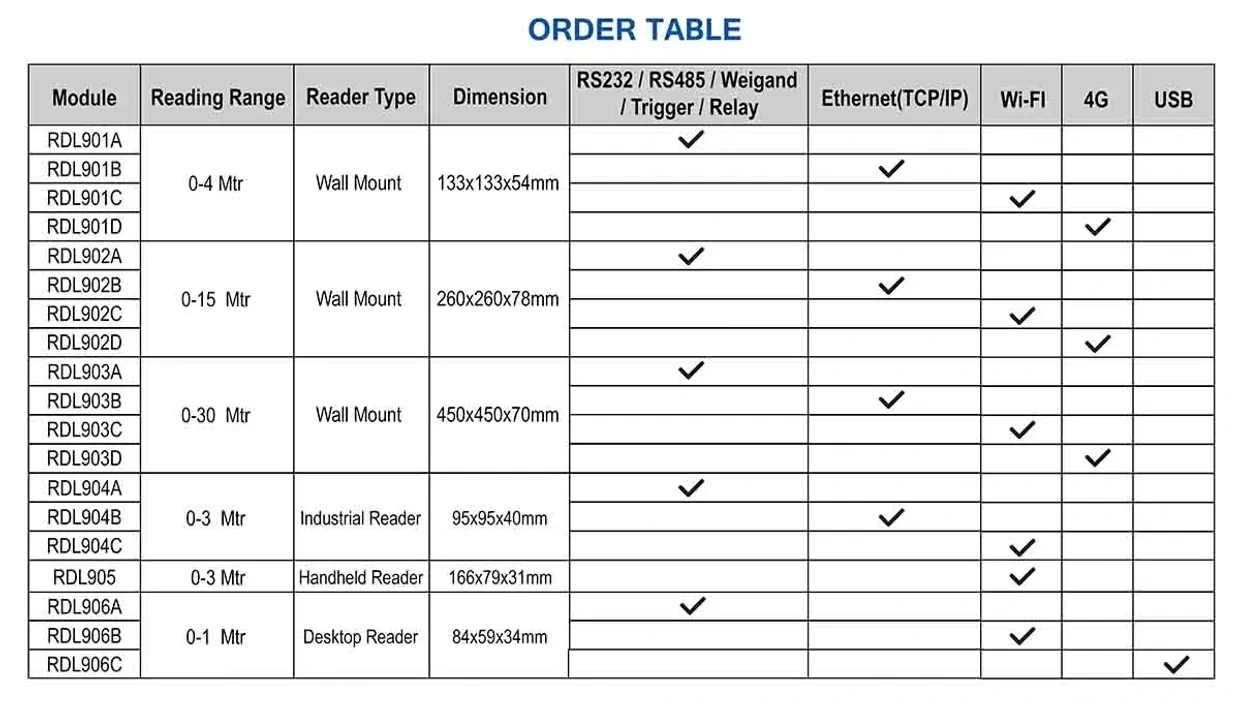

ORDER TABLE
| Model Part # | Reading Range | Reader Type | Dimensions | Supported Interface / Connectivity | Action |
|---|---|---|---|---|---|
| RDL901A | 0 - 4 Mtr | Wall Mount | 133 x 133 x 54 mm | RS232 / RS485 / Wiegand / Relay | |
| RDL901B | 0 - 4 Mtr | Wall Mount | 133 x 133 x 54 mm | Ethernet (TCP/IP) | |
| RDL901C | 0 - 4 Mtr | Wall Mount | 133 x 133 x 54 mm | Wi-Fi | |
| RDL901D | 0 - 4 Mtr | Wall Mount | 133 x 133 x 54 mm | 4G LTE Cellular | |
| RDL902A | 0 - 15 Mtr | Wall Mount | 260 x 260 x 78 mm | RS232 / RS485 / Wiegand / Relay | |
| RDL902B | 0 - 15 Mtr | Wall Mount | 260 x 260 x 78 mm | Ethernet (TCP/IP) | |
| RDL902C | 0 - 15 Mtr | Wall Mount | 260 x 260 x 78 mm | Wi-Fi | |
| RDL902D | 0 - 15 Mtr | Wall Mount | 260 x 260 x 78 mm | 4G LTE Cellular | |
| RDL903A | 0 - 30 Mtr | Wall Mount | 450 x 450 x 70 mm | RS232 / RS485 / Wiegand / Relay | |
| RDL903B | 0 - 30 Mtr | Wall Mount | 450 x 450 x 70 mm | Ethernet (TCP/IP) | |
| RDL903C | 0 - 30 Mtr | Wall Mount | 450 x 450 x 70 mm | Wi-Fi | |
| RDL903D | 0 - 30 Mtr | Wall Mount | 450 x 450 x 70 mm | 4G LTE Cellular | |
| RDL904A | 0 - 3 Mtr | Industrial Reader | 95 x 95 x 40 mm | RS232 / RS485 / Wiegand / Relay | |
| RDL904B | 0 - 3 Mtr | Industrial Reader | 95 x 95 x 40 mm | Ethernet (TCP/IP) | |
| RDL904C | 0 - 3 Mtr | Industrial Reader | 95 x 95 x 40 mm | Wi-Fi | |
| RDL905 | 0 - 3 Mtr | Handheld Reader | 166 x 79 x 31 mm | Wi-Fi / Android OS | |
| RDL906A | 0 - 1 Mtr | Desktop Reader | 84 x 59 x 34 mm | RS232 / RS485 / Wiegand / Relay | |
| RDL906B | 0 - 1 Mtr | Desktop Reader | 84 x 59 x 34 mm | Wi-Fi | |
| RDL906C | 0 - 1 Mtr | Desktop Reader | 84 x 59 x 34 mm | USB Plug-and-Play |
* For Customization of Antenna Gain, Frequency Tuning & Communication Interfaces Please Contact Sales Team
Deploy across warehouse, logistics, and industrial tracking environments
Ready to Automate Your Asset & Inventory Tracking?
Deploy long-range UHF RFID technology to gain real-time visibility across supply chain and warehouse facilities.
